Product highlights
Soil and Environment

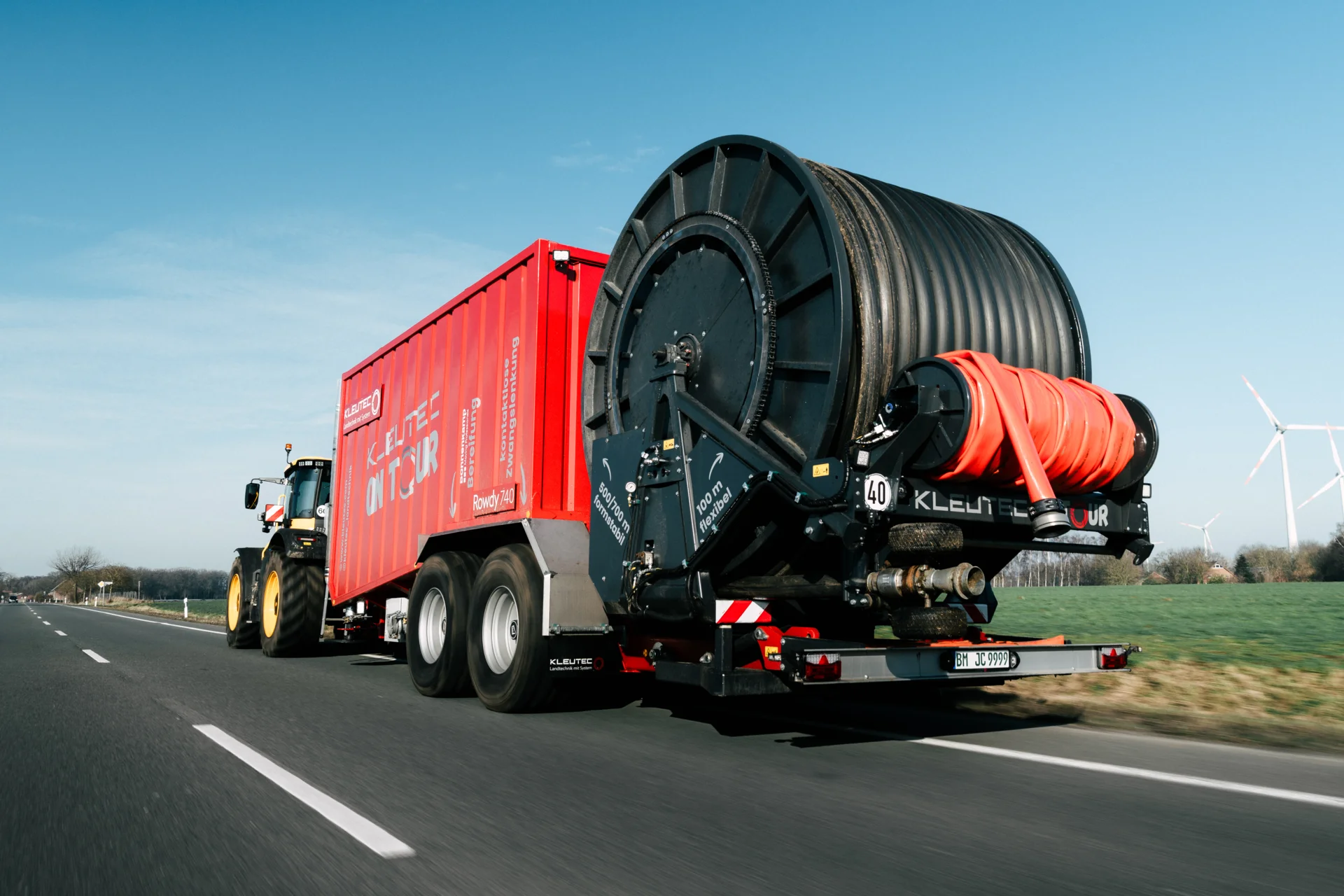

Time saving
Handling
Versatility
Technology

Suction arm
The newly developed suction arm enables powerful and clean transfer of the manure from the transport tanker into the container. Thanks to the 1.5 metre long telescopic function, the arm can extend 8.2 metres beyond the tractor and thus very flexibly suck the slurry from the feeder vehicles, even if they are standing crosswise in front of the tractor. A hydraulically driven rotary lobe pump creates a vacuum and the slurry is then conveyed into the container using the powerful turbo accelerator. This means that 25m³ can be overloaded in less than 3 minutes and hoses no longer need to be moved and connected by hand. This increases the convenience and efficiency of the system.
Translated with www.DeepL.com/Translator (free version)

Container
With a volume of 40 m³, the container holds one and a half lorry loads and is therefore an ideal temporary storage facility for the permanent spreading of liquid manure.
Pump
The built-in Doda centrifugal pump has an output of up to 300 m³/h and is approved for tractors up to 300 hp. This enables high output and low maintenance thanks to a separate gearbox and pump housing.

Hose reel
The hose reel is a reinforced version of an irrigation reel. It is therefore able to withstand the high forces involved in hosing and reliably unwinds and rewinds the hose.

Reifen
Die voluminösen Reifen der Größe 650/55-R26,5 sorgen für eine verlässliche Fahr zu und auf dem Feld und können auch bei feuchten Verhältnissen einen sicheren Stand der Maschine gewährleisten.

Tyres
The voluminous 650/55-R26.5 tyres ensure reliable driving to and in the field and can also ensure that the machine remains stable in wet conditions.

Swivel head
The hose reel is connected to the frame by a swivel head so that the hose can be flexibly wound and unwound in any direction. The swivelling angle of 200° opens up many possibilities for laying the hose on both small and large areas, depending on the requirements.

Compressor
The screw compressor with an air output of 8000 l/min ensures that the slurry hose is emptied quickly. Thanks to the hydraulic drive, the unit is fully integrated into the load-sensing hydraulics and can be conveniently controlled using the remote control.

Operation

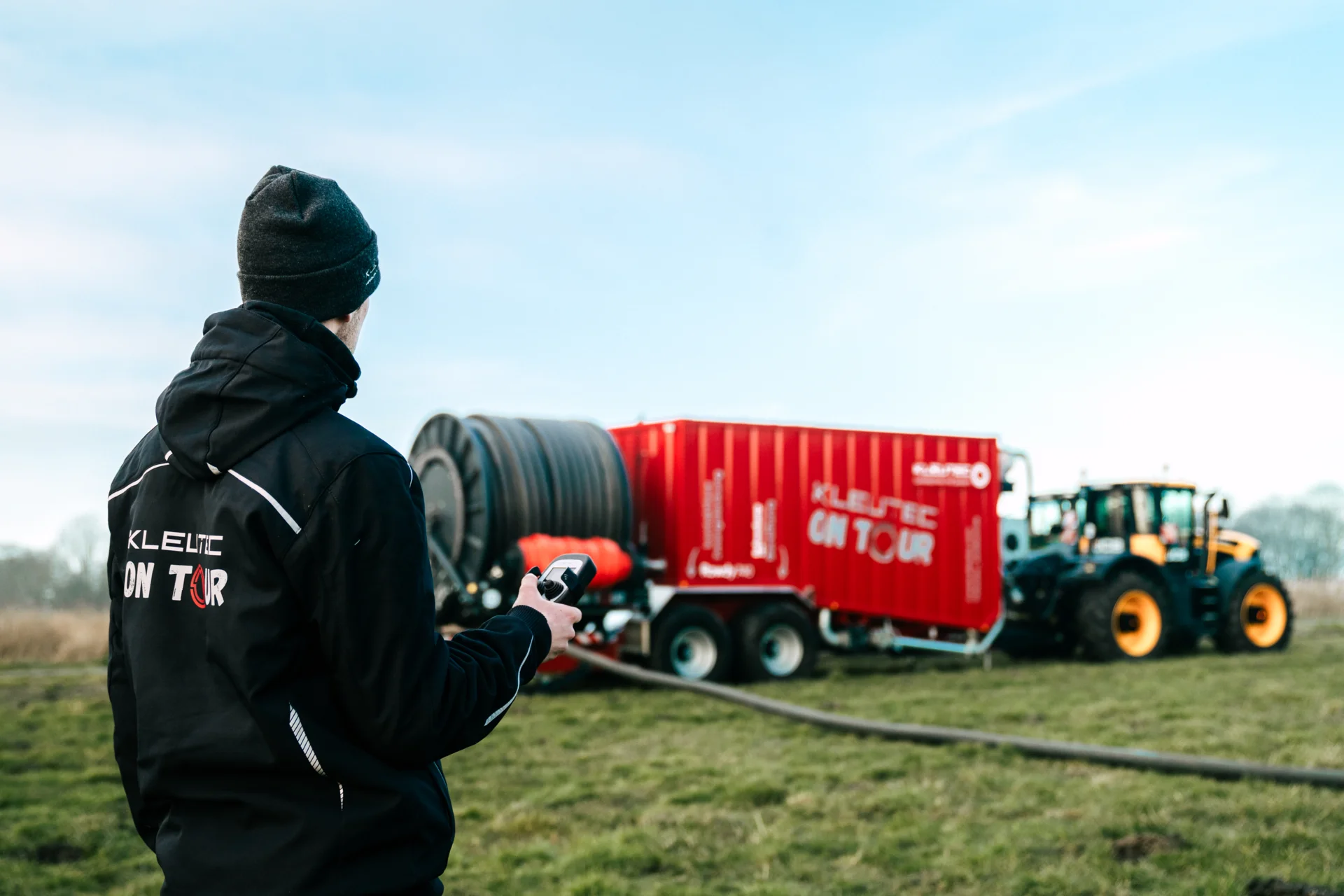

The convenient radio remote control is available in two versions. The standard version as an analogue control unit fulfils all functions and gives you a clear view of the component to be operated. The professional version allows you to operate the hose reel proportionally and displays precise functions on the integrated screen.

Camera
A reversing camera including protection is optionally available on the machine and significantly increases visibility when reversing.
Technical data

Video - Assembly of the Rowdy 740
Video - Dismantling the Rowdy 740
Press reviews
The specialised press has already taken a look at the machine. The magazine ‘profi’ wrote a driving report on the machine in September. A video of the technology in action was also shot.
‘After the mobile 11.60 metre long container was driven into the field, liquid manure could be spread just twelve minutes later.’
‘As quickly as the machine is ready for use, it is gone from the field again.’
‘The system combines container, reel and pump in one unit. This reduces set-up times and even smaller areas can be fertilised effectively and gently with the hose system.’
Biogasjournal has also reported on the machine.
The contractor Karl-Heinz Suttrup from Münster-Nienberge has a machine in use and is very satisfied with the technology.
